Hagor SOPW 65 Zoll Landscape
Outdoorgehause horizontal 65 Zoll

Hagor SOPW 65 Zoll Landscape
Outdoorgehause horizontal 65 Zoll

EIA
8'890.00

Please log in to be able to use the shopping cart and then complete orders.

Log in
Expected to be available 30 days from order date
Outdoorgehäuse inkl. Heizung und Lüftung für 65 Zoll Display
Item no 2546
EAN code 4250058525468
Garantie 2 Jahre Garantie

Description

This high-quality outdoor enclosure is ideal for 65" (165 cm) displays. The enclosure features a VESA mounting interface that supports sizes from a minimum of 200 x 200 mm up to a maximum of 800 x 600 mm. It includes a pull-out function of up to 648 mm, ensuring optimal service accessibility.

The 6.4 mm chemically anti-glare laminated safety glass (VSG) provides effective protection for the display. The enclosure meets protection ratings IP 65 / NEMA 4 (front) and IP 54 (rear).

The protective housing is lockable, offering protection against unauthorized access and vandalism. There is also sufficient space for devices such as a mini PC or set-top box.

The thermostat- and sensor-controlled temperature management, including an air curtain in front of the panel, enables operation within a temperature range from -25 °C to +40 °C*.

The shock- and scratch-resistant powder coating is solvent-free and comes in standard dark grey (C5, RAL 7016).

*Please note: The built-in display must also be suitable for this temperature range.

Highlights

  • 65" | 165 cm
  • Landscape
  • VESA mount, extendable up to 648 mm max.
  • Min. 200 x 200 mm – Max. 800 x 600 mm
  • 6.4 mm chemically anti-glare laminated safety glass (VSG)
  • IP 65 / NEMA 4 (front) and IP 54 (rear)
  • Lockable enclosure
  • Protection against unauthorized access and vandalism
  • Thermostat- and sensor-controlled temperature management
  • Includes air curtain in front of the panel
  • Thanks to high-quality heating and high-performance ventilation
  • Suitable for an ambient temperature range of -25 °C to +40 °C

Specifications

Ausrichtung Landscape
Funktionen Fix
Electric No
Area of application Outdoor
Protection class
  • IP65
  • IP54
Gewicht netto 69 kg
Gewicht brutto 69 kg
Additional features
Features Diebstahlschutz
Bracket features
Halterungstyp Outdoorgehäuse
Colour and design
Color Schwarz
Montage
Maximum screen size 65 Zoll
VESA
  • 200 x 200 mm
  • 200 x 300 mm
  • 200 x 400 mm
  • 300 x 200 mm
  • 300 x 300 mm
  • 400 x 200 mm
  • 400 x 300 mm
  • 400 x 400 mm
  • 400 x 600 mm
  • 500 x 200 mm
  • 500 x 300 mm
  • 500 x 400 mm
  • 500 x 500 mm
  • 500 x 600 mm
  • 700 x 400 mm
  • 700 x 600 mm
  • 800 x 200 mm
  • 800 x 300 mm
  • 800 x 400 mm
  • 800 x 600 mm

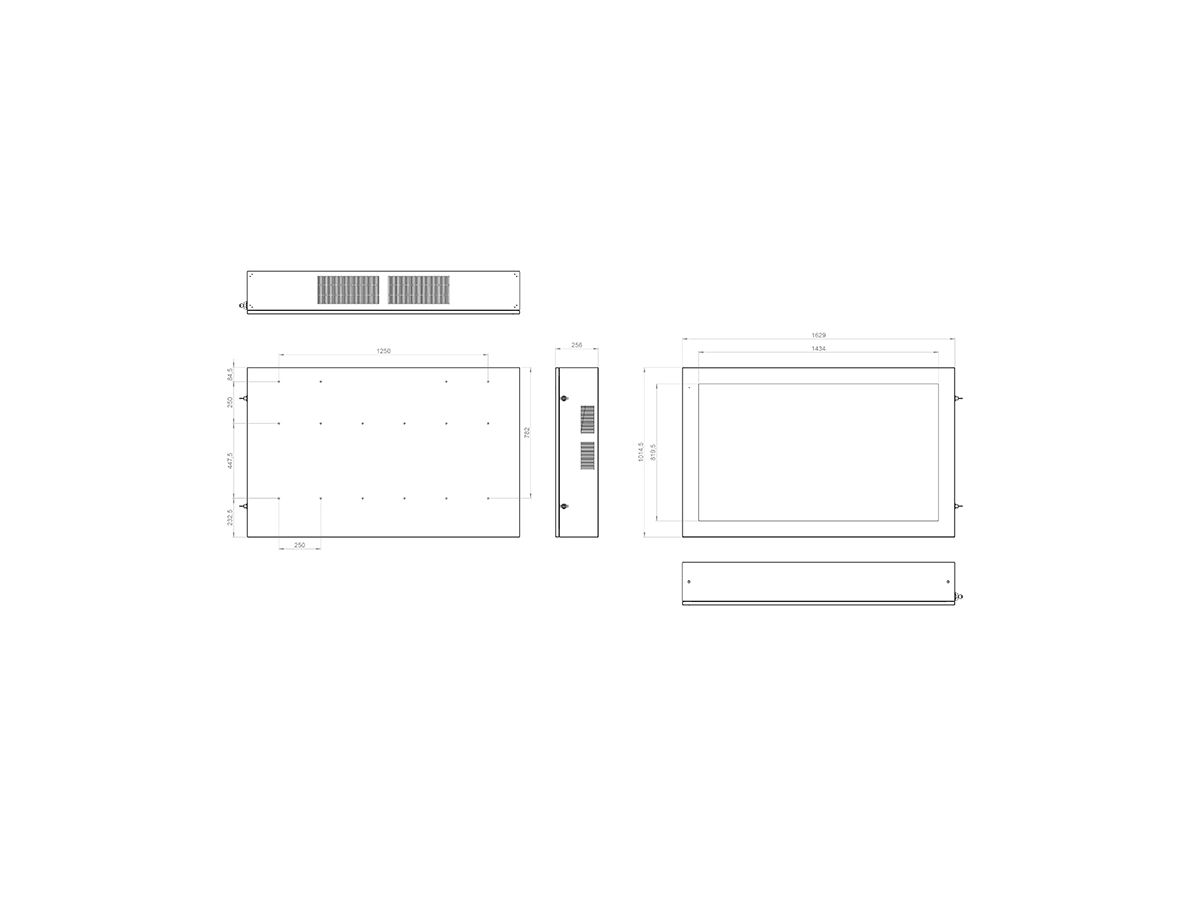

Produktdimensionen
Breite 1629 mm
Höhe 1015 mm
Tiefe 250 mm

Downloads

Factsheet_2546_Eng.pdf (1.2 MB)
