Description

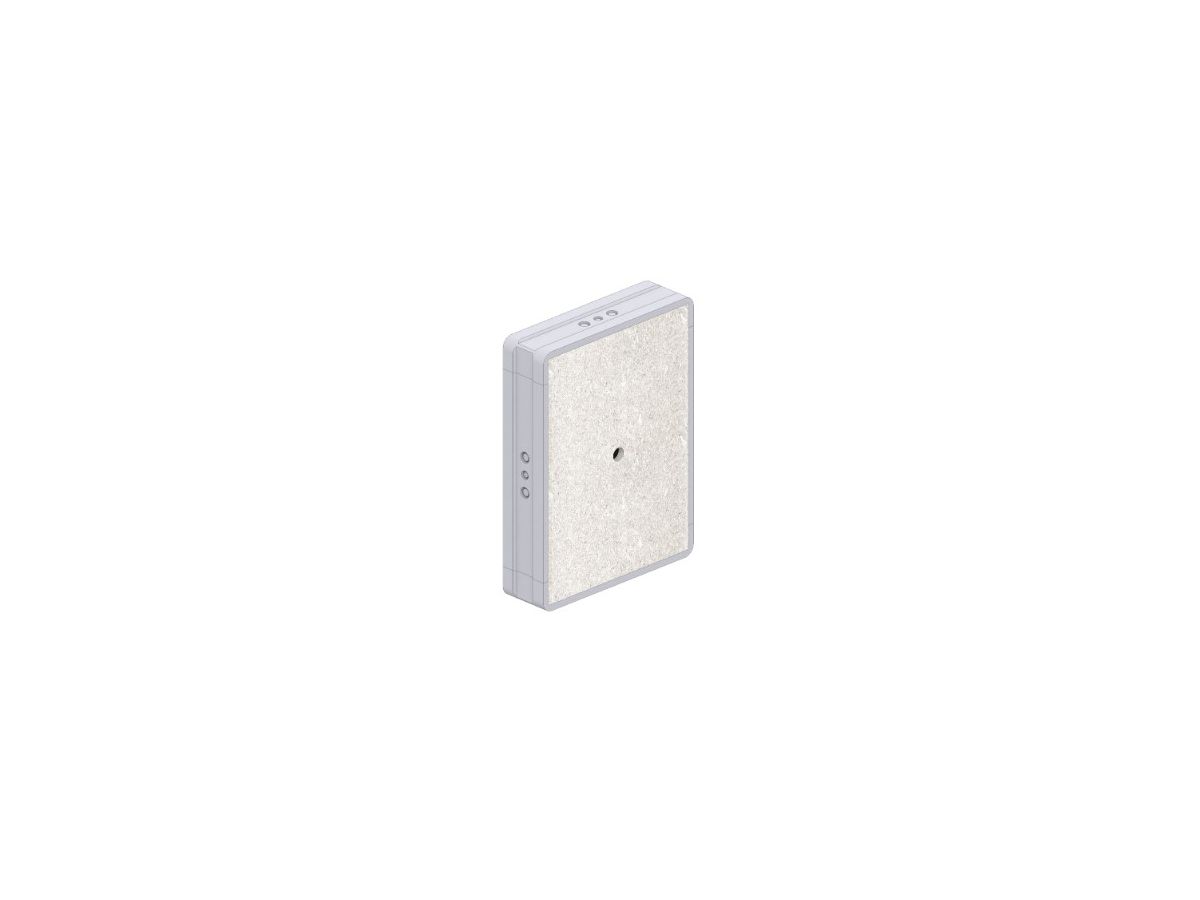

Wallboxx universal flush-mount box for masonry and concrete walls. The Wallboxx allows professional installation of flush-mounted speakers. The OSB front and rear walls integrate seamlessly into the workflow for easy finishing of the wall surface. The perimeter base body in EPS resists resonance and has acoustic insulation properties.

Highlights

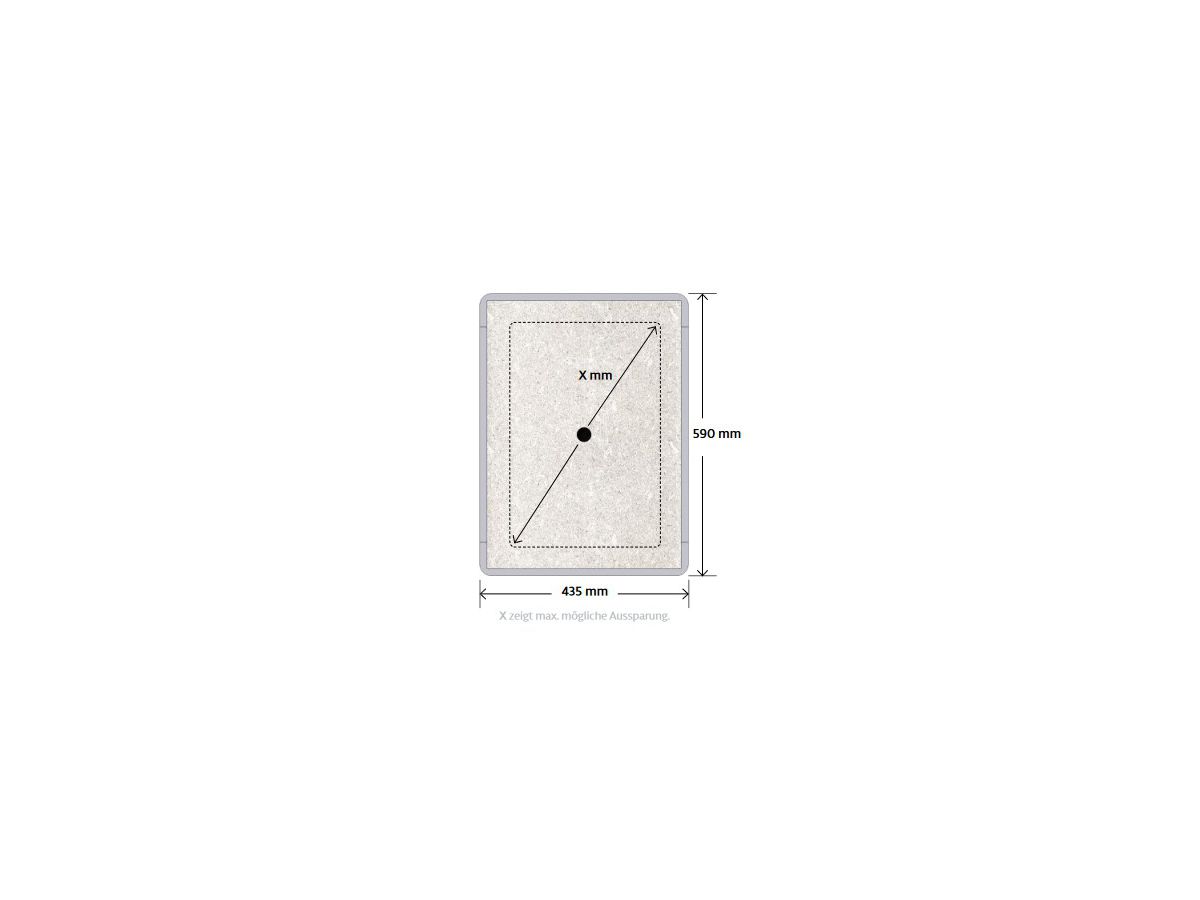

•     Hole size 273.1 x 176.3 mm
•     Front and rear panel made of quartz-coated
•     OSB boards (15 mm)
•     Fixed break-out points for optimum installation of electrical conduits (20 mm + 25 mm)

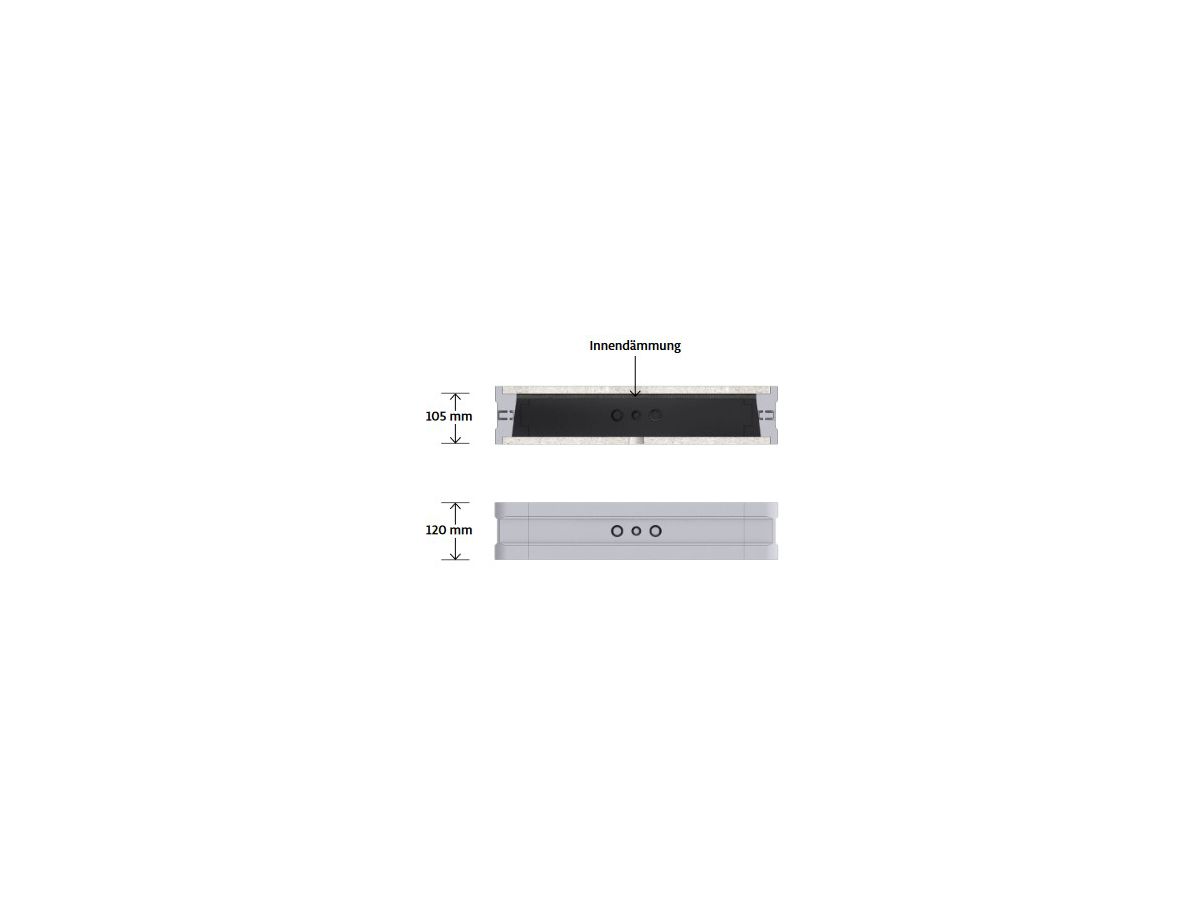

•     Interior foam insulation, gray (10 mm)
•     low weight and high stability with excellent vibration damping compared to other systems better audio reproduction than enclosures made of wood, sheet metal or plastic, better airborne and structure-borne sound insulation than conventional installation systems
•     universal recess (30 mm)

Specifications

Gewicht netto	0.5 kg
Gewicht brutto	0.5 kg

Downloads

Wallboxx L.pdf (276.6 KB)

Download

B-System-Installation-Wallboxx.pdf (902.9 KB)

Download

Kompatibel mit

Sonos In-Wall
In-Wall Einbaulautsprecher
