Harvey

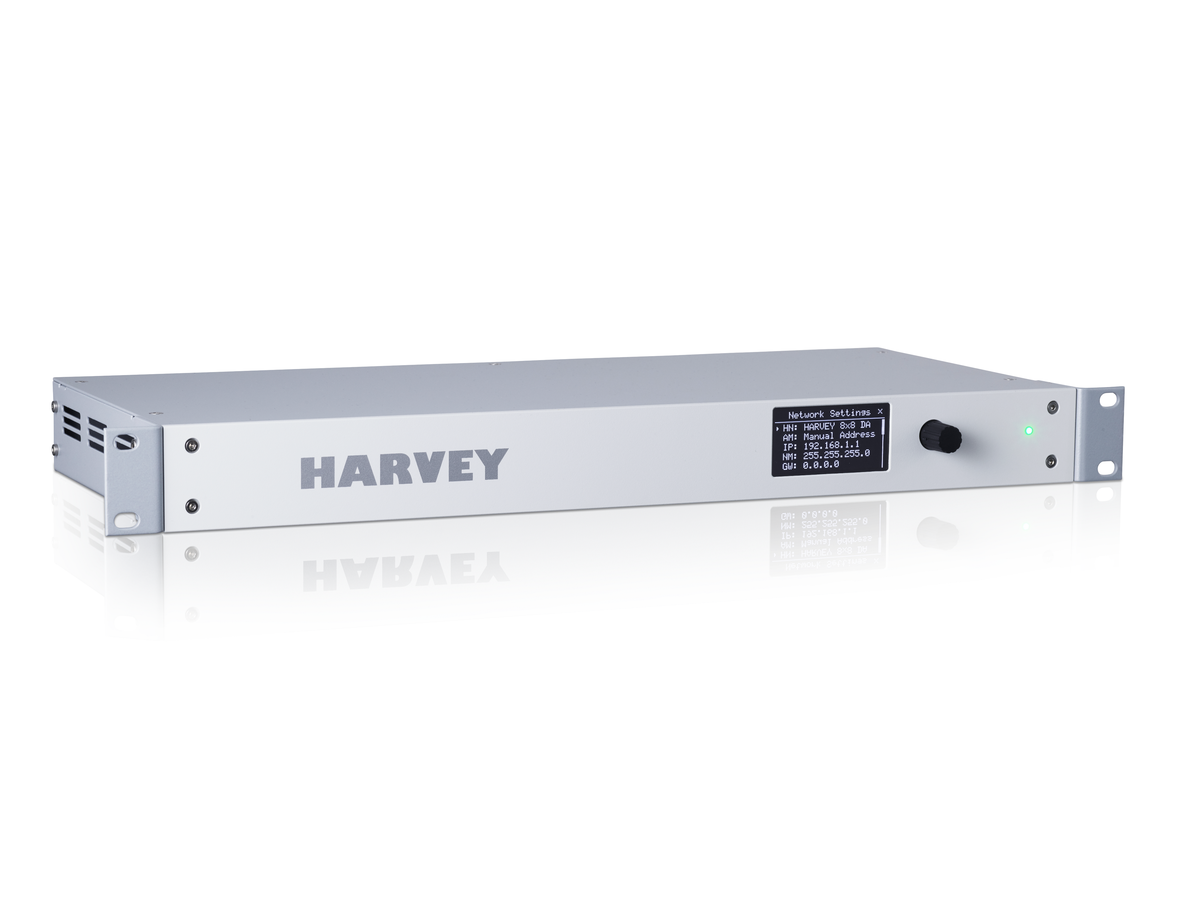

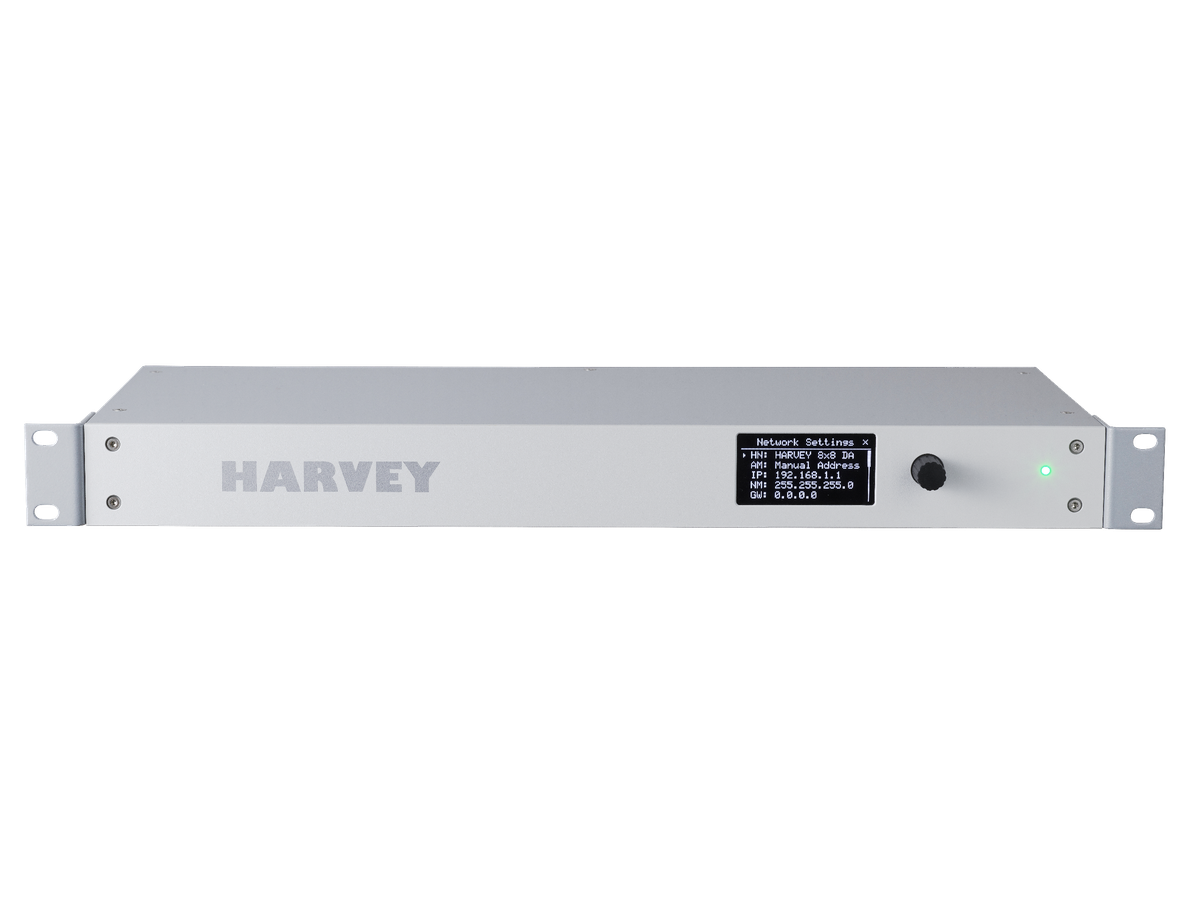

Pro16x8-DA DSP Audio Matrix
16 IN 8 Out, 64x64 Dante Interface
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no | Pro16x8-DA |
|---|---|
| Garantie | 2 Jahre Garantie |
Description
Audible
HARVEY has extensive audio processing functions that can be configured to suit the current application. The settings can be saved as presets and recalled at the push of a button to quickly switch between different usage variants of the installation.
Controllable
HARVEY is able to connect to a wide variety of devices and act as a control center for audio, lighting and media technology. The matrix converts the data between the interfaces and makes additional converters superfluous. In addition to the Remote Control RC, all common media control systems are suitable for controlling the matrix and the connected devices. RTI driver is available!
Operable
The HARVEY Composer user interface has a simple user philosophy: The menu structure is clearly arranged, elements are assembled in a project via drag & drop and immediately configured in the context menu. Thus, even complex planning documents can be created with a few mouse clicks.
Highlights
- 16 mono inputs
- 8 mono outputs
- 64x64 Dante Interface

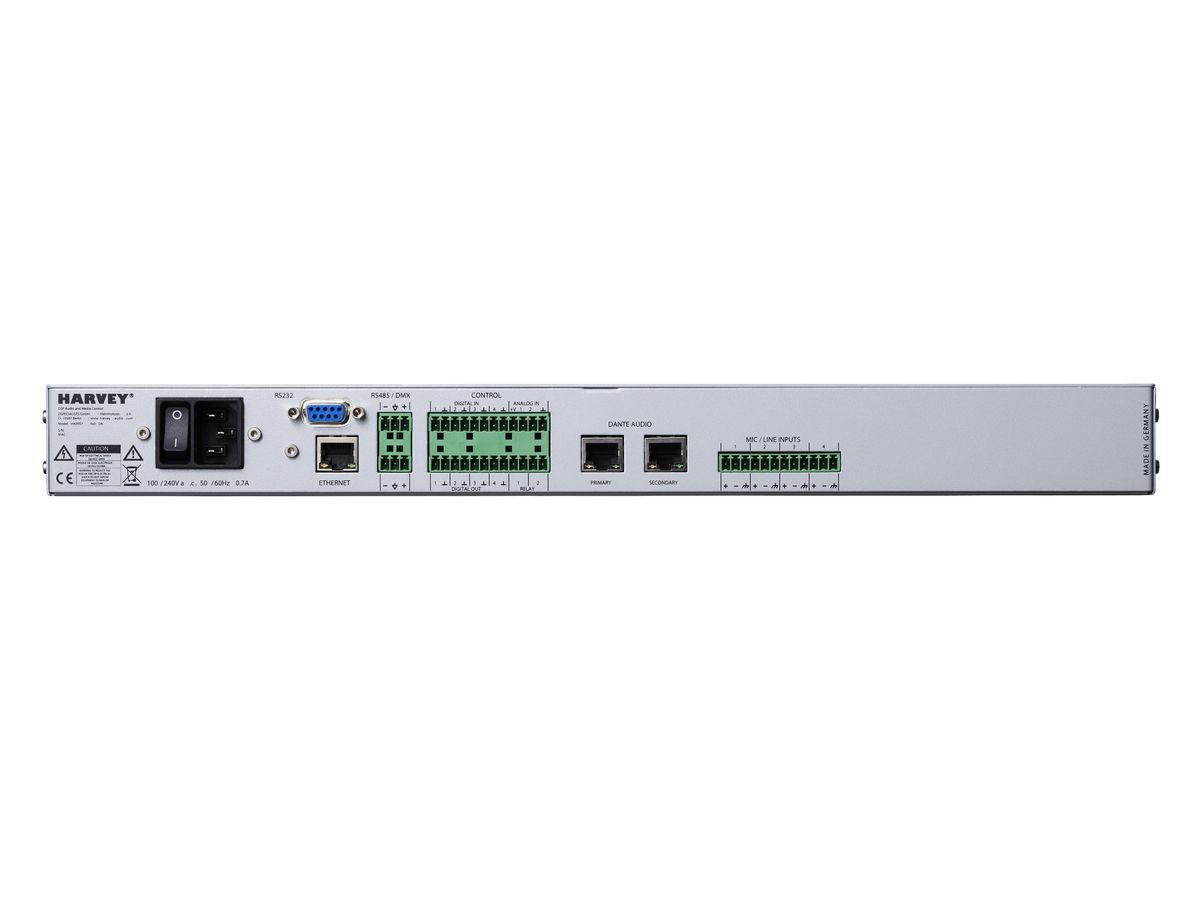

- Base Unit: RS-232, Network, GPIO, DMX, Power
- RTI driver
Specifications
| Gewicht netto | 10.9 kg |
|---|---|
| Gewicht brutto | 10.9 kg |
Colour and design
| Color | Silber |
|---|
Konnektivität
| Anschlüsse und Übertragungsstandard |
|
|---|---|
| Anzahl Kanäle Ausgang | 8 |
Produktdimensionen
| Breite | 482 mm |
|---|---|
| Höhe | 43 mm |
| Tiefe | 193 mm |
