Description

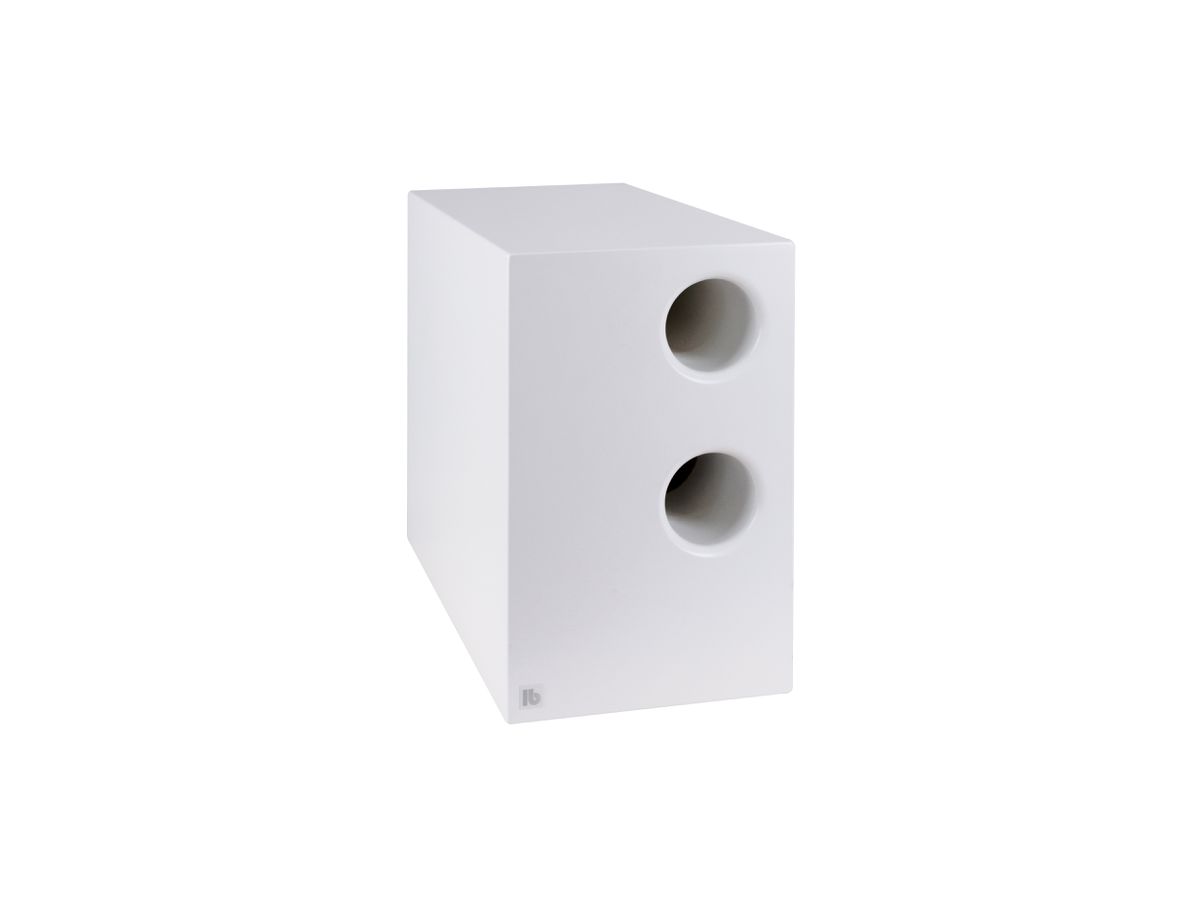

The SUB 40 is a compact, passive subwoofer for use in multi-channel systems with a system controller. By using two heavy-duty 6.5" long-throw bass drivers in a double-vented bandpass enclosure, the SUB 40 produces high bass levels. Thanks to the slim design with compact dimensions and the defined sound outlet openings, it can be integrated invisibly into furniture and fixtures. Connection is via two Speakon sockets (input and thru) connected in parallel or plug-in screw terminals.

The connections are set back so that plugs and cables do not protrude. The SUB 40 is the matching subwoofer for satellite speakers of the Installation series, for the line array speakers of the ZL series and for in-wall speakers of the DE, DE-X and DE-Plan series.

Highlights

•         Bandpass subwoofer
•         Compact design
•         2 × 6.5" long excursion chassis
•         Power handling 400 watts
•         Standard colours white and black

Specifications

Lautsprecher Art	Subwoofer
Lautsprechergrösse (Zoll)	6.5"
Gewicht netto	0 kg
Gewicht brutto	0 kg

Colour and design

Color	Weiss

Produktdimensionen

Breite	250 mm
Höhe	400 mm
Tiefe	500 mm

Downloads

LB Datenblatt SUB 40_2023.pdf (771.9 KB)

Download
