LB SUB 80 schwarz
Passiver Subwoofer, 4 Ohm

LB SUB 80 schwarz
Passiver Subwoofer, 4 Ohm

EIA
1'244.00

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available again on 12.12.2024
Bandpass subwoofer
Item no 1330-0002
EAN code 4262421612385
Garantie 5 Jahre Garantie

Description

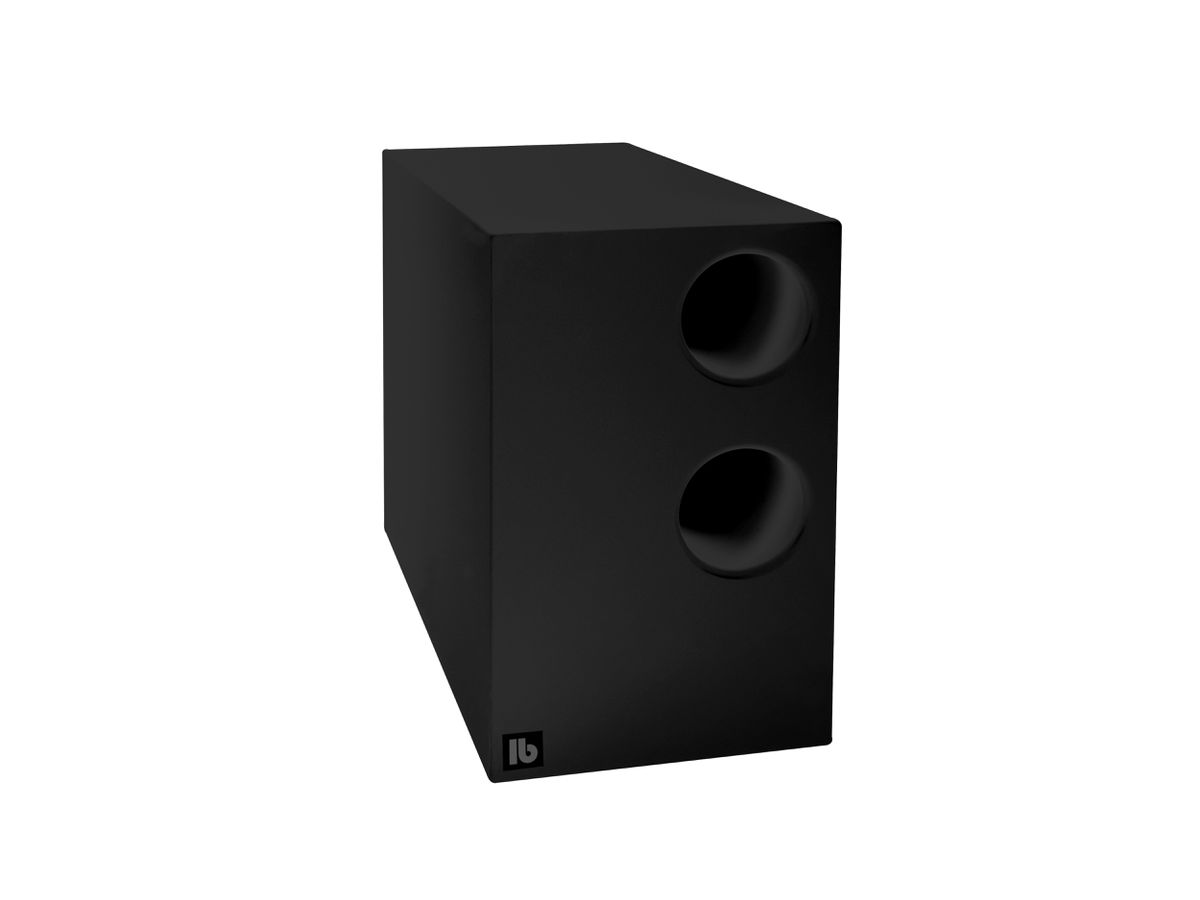

The SUB 80 is a powerful, passive subwoofer for use in multi-channel systems with a system controller. The SUB 80 produces very high bass levels by using four heavy-duty 6.5" long excursion bass drivers in a double-vented bandpass enclosure. Thanks to the slim design with compact dimensions and the defined sound outlet openings, it can be integrated invisibly into furniture and fixtures.

It is connected via two Speakon sockets (input and thru) connected in parallel or via plug-in screw terminals. The connections are set back so that plugs and cables do not protrude. The SUB 80 is the matching subwoofer for satellite speakers of the Installation series and the PA series as well as for the line array speakers of the ZL series.

Highlights

  •         Bandpass subwoofer
  •         Compact design
  •         4 × 6.5" long excursion chassis
  •         800 Watt power handling
  •         Standard colours white and black

Specifications

Lautsprecher Art Subwoofer
Lautsprechergrösse (Zoll) 6.5"
Gewicht netto 0 kg
Gewicht brutto 0 kg
Colour and design
Color Schwarz
Produktdimensionen
Breite 320 mm
Höhe 520 mm
Tiefe 650 mm

Downloads

LB Datenblatt SUB 80_2023.pdf (723.6 KB)
