RTI

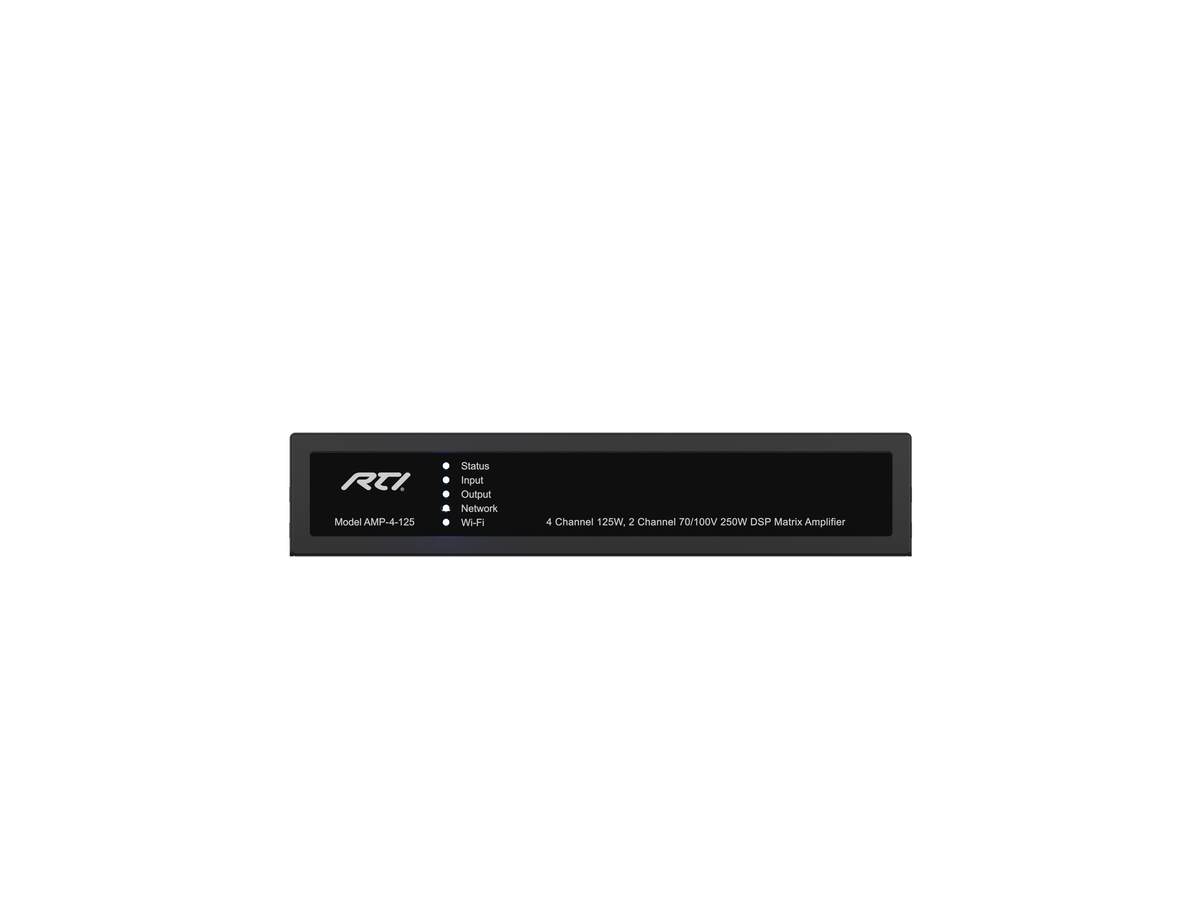

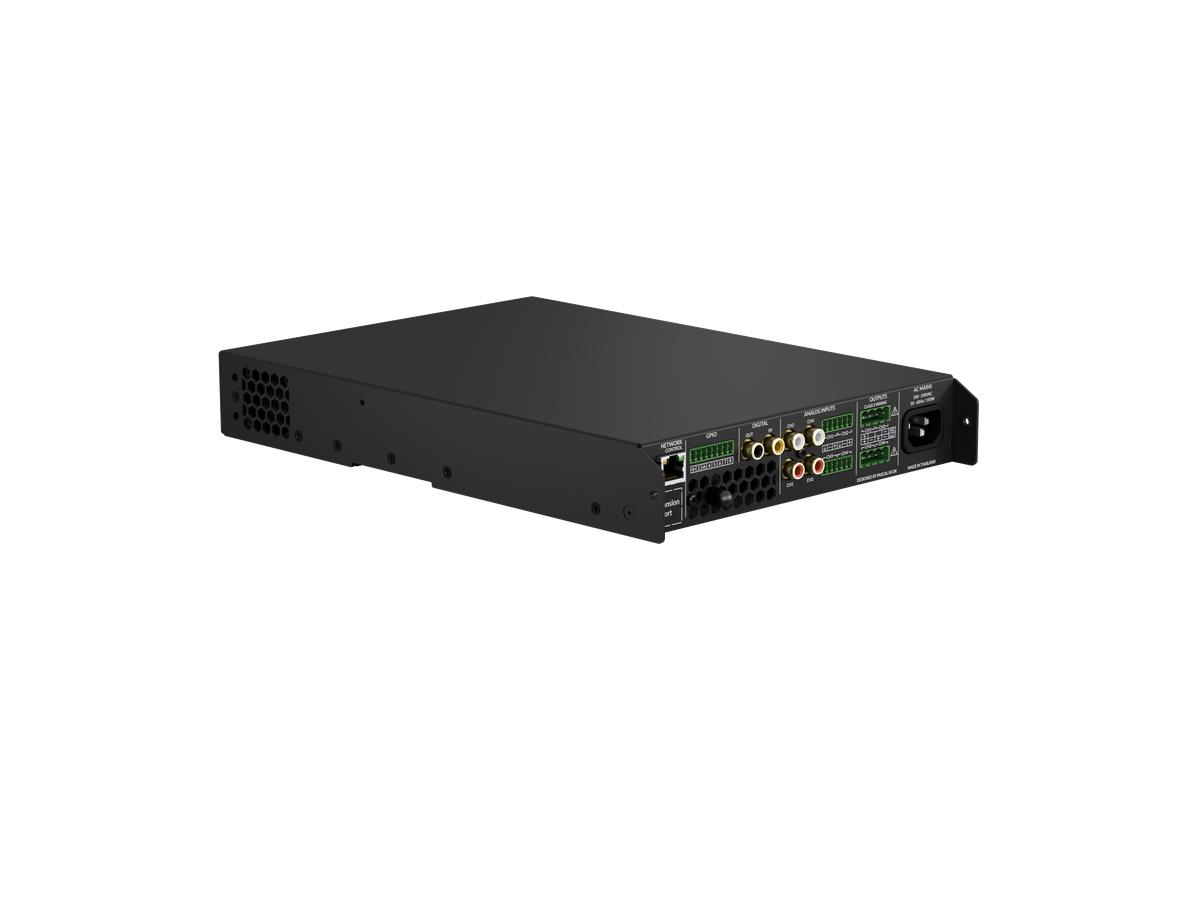

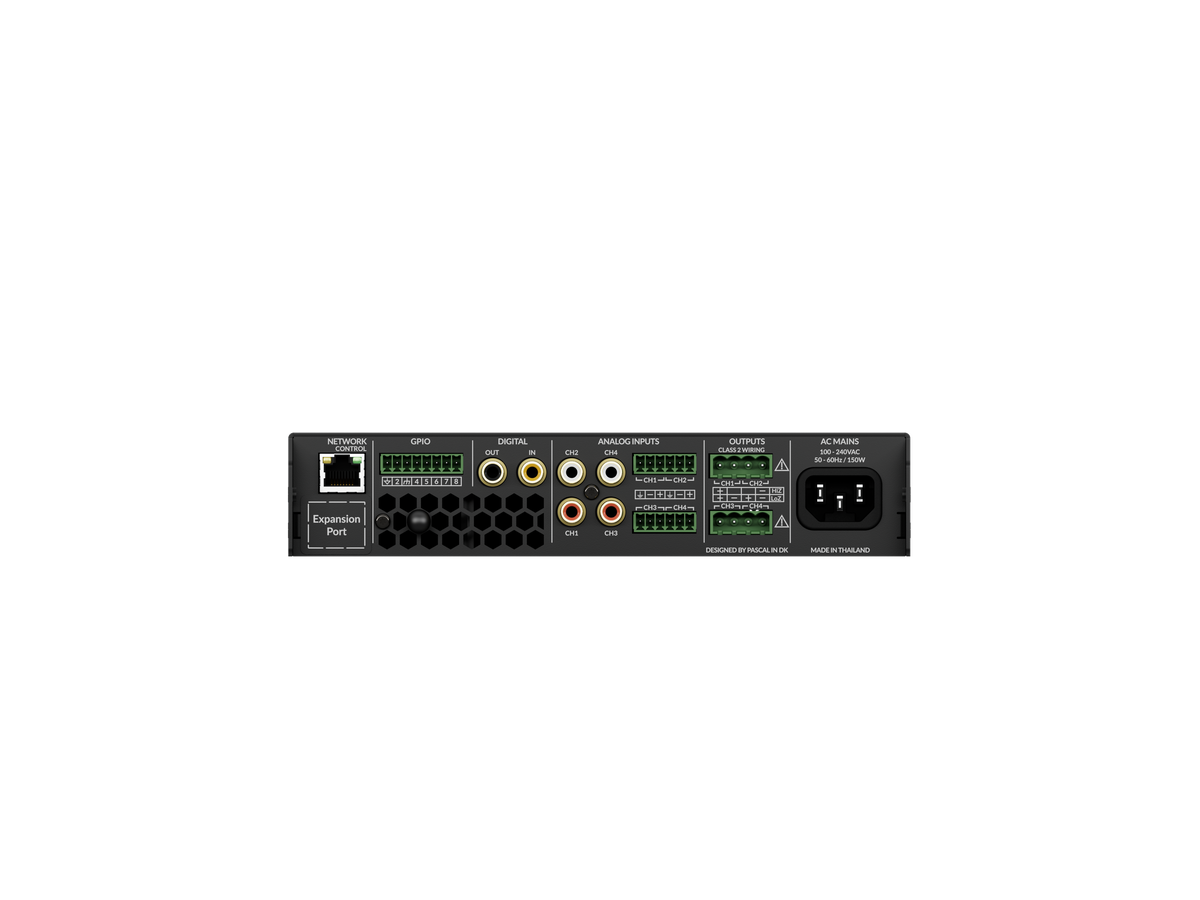

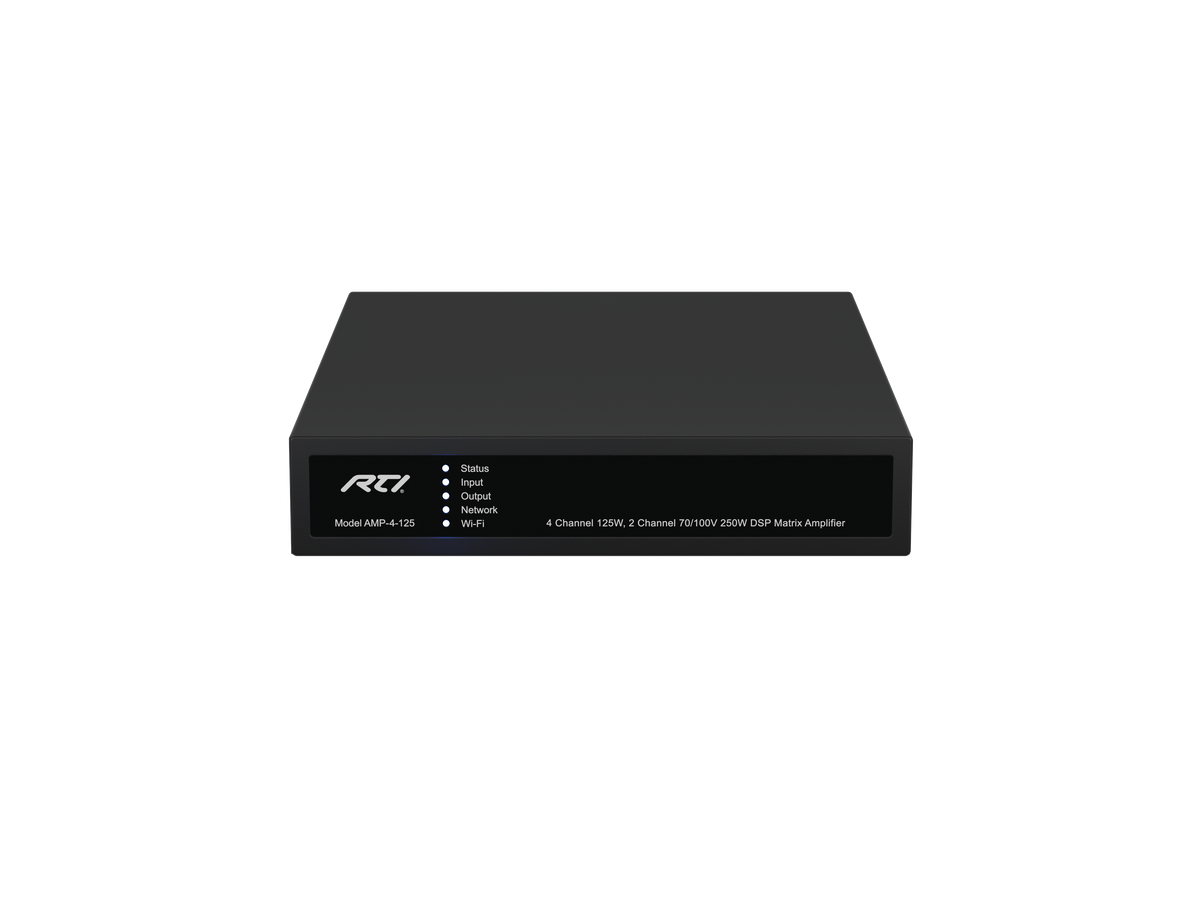

DSP Matrix Amplifier AMP-4-125
4 CH 125W, 2 CH 100V / 250W
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no | 10-210860-18 |
|---|---|
| EAN code | 8100649914484 |
:strip_icc():strip_exif()/images/rtilogo_slogan.jpg "RTI")
Description
The AMP-4-125 power amplifier delivers configurable and reliable high performance audio power amplification for commercial and hospitality applications that demand a mix of low impedance and high impedance outputs. With a compact 1U half-rack design, this DSP-enabled Class-D amplifier can drive low impedance 4Ω to 16Ω loudspeakers as well as high impedance 70V/100V transformer-coupled loudspeakers. The AMP-4-125 can accept four analog inputs and one stereo S/PDIF digital input, and delivers either two low impedance stereo outputs, or two 70V/100V mono outputs.
For set-up, the RTI web GUI enables effortless browser-based configuration of the installed system. Its DSP configuration options include multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, sine wave generator, and more.
Highlights
- Four analog audio source input channels (balanced or
- unbalanced) and one digital input (S/PDIF).
- • Two Lo-Z stereo or four Lo-Z mono output zones, two
- Hi-Z mono output zones, or a mix of them.
- • Class D amplifier provides a robust and clear audio
- experience with 125 Watts @ 4Ω/ 8Ω per channel or
- 250W @ 70V/100V per channel.
- • Daisy-chain multiple amplifiers and expand the number of
- zones by by distributing up to two audio inputs or zones.
- • Built-in DSP allows for fine-tuning acoustic characteristics
- for each zone.
- • Easy configuration via LAN or WiFi.
- • IP and GPIO control options.
- • Free-standing installation or rack-mount (rack-mount kit
- included)
Specifications
| Verstärkertyp |
|
|---|---|
| Output power | 125 W |
| Gewicht netto | 0 kg |
| Gewicht brutto | 0 kg |
Colour and design
| Color | Schwarz |
|---|
Konnektivität
| Anschlüsse und Übertragungsstandard |
|
|---|---|
| AV Wireless Übertragung | Wireless |
| Anzahl Kanäle Ausgang | 4 |
| Impedance | 4-8 Ohm |
| Multikanal | No |
Produktdimensionen
| Breite | 320 mm |
|---|---|
| Höhe | 44 mm |
| Tiefe | 220 mm |
