RTI

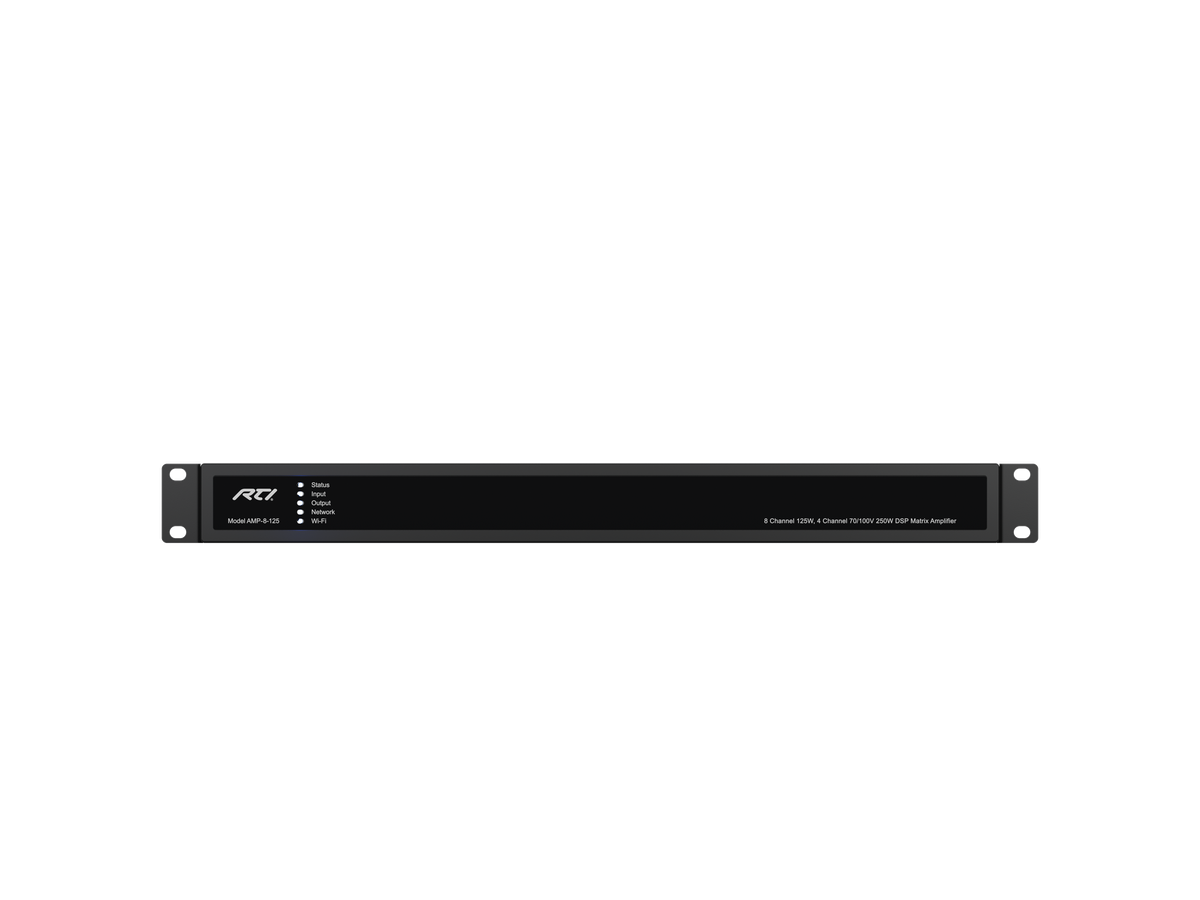

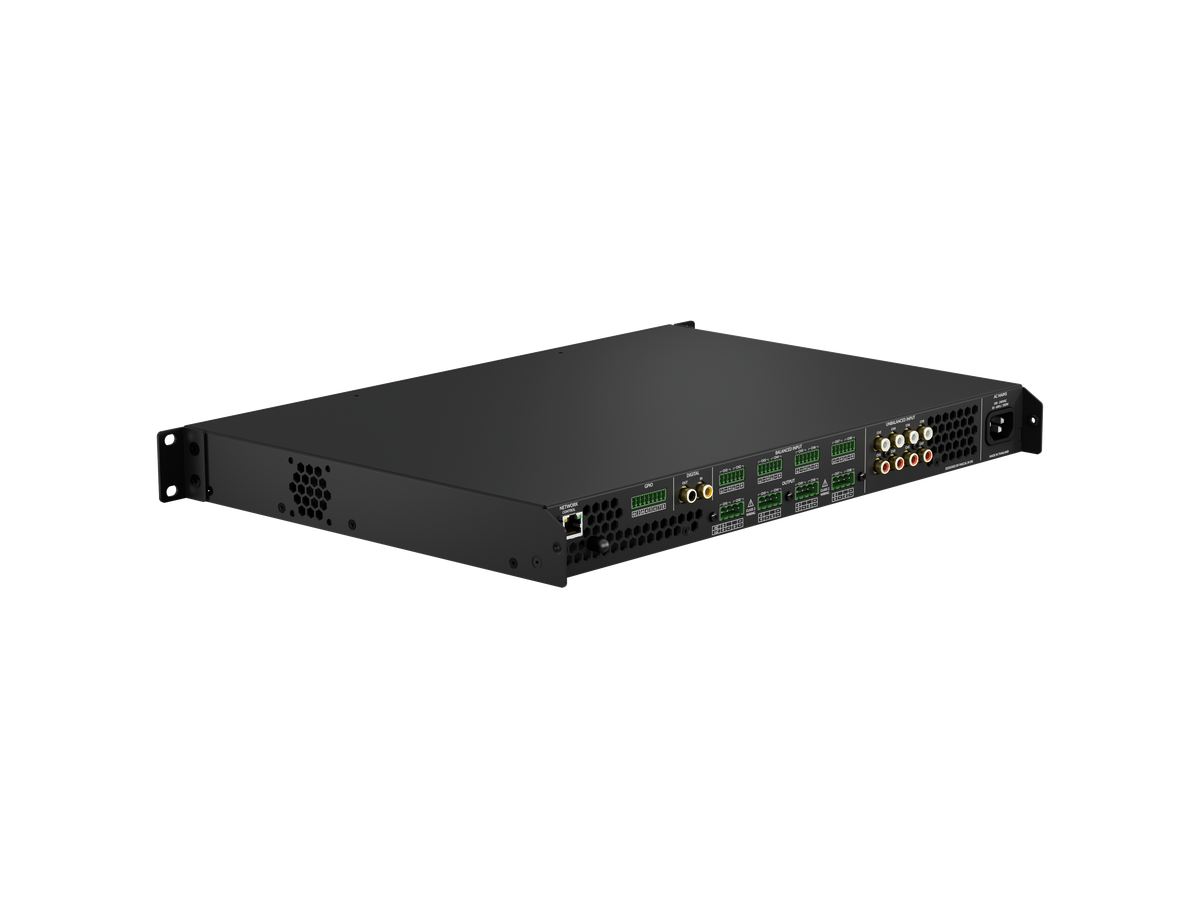

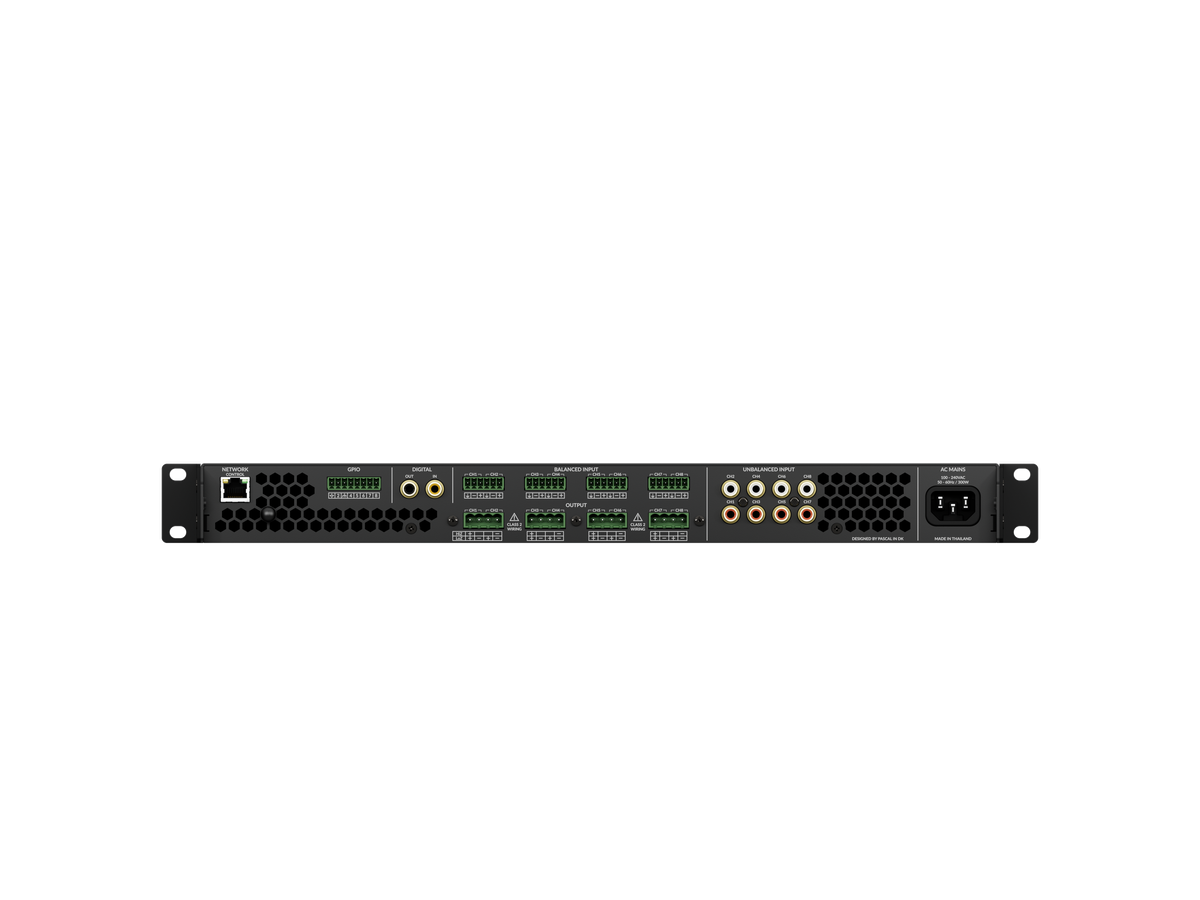

DSP Matrix Amplifier AMP-8-125
8 CH 125W, 4 CH 100V / 250W
EIA
2'342.00
Please log in to be able to use the shopping cart and then complete orders.
Log in
DSP-Matrix-Verstärker - 8 Kanal 125W oder 4 Kanal 70/100V 250W
| Item no | 10-210861-19 |
|---|---|
| EAN code | 8100649914552 |
:strip_icc():strip_exif()/images/rtilogo_slogan.jpg "RTI")
Description
The AMP-8-125 power amplifier delivers configurable and reliable high performance audio power amplification for commercial and hospitality applications that demand a mix of low impedance and high impedance outputs. With a compact 1U design, this DSP-enabled Class-D amplifier can drive low impedance 4Ω to 16Ω loudspeakers as well as high impedance 70V/100V transformer-coupled loudspeakers. The AMP-8-125 can accept eight balanced or unbalanced analog inputs and one stereo S/PDIF digital input and delivers either four low impedance stereo outputs at 125W per channel, or four 70V/100V mono outputs at 250W per channel.
For set-up, the RTI web GUI enables effortless browser-based configuration of the installed system. Its DSP configuration options include multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, sine wave generator, and more
Highlights
- Eight analog audio source input channels (balanced or unbalanced) and one digital input (S/PDIF)
- Eight Lo-Z stereo or four Lo-Z mono output zones, two Hi-Z mono output zones or a mix of both
- Class D amplifier for a robust and clear sound experience
- Audio experience with 125 watts @ 4Ω/ 8Ω per channel or 250W @ 70V/100V per channel.
- Built-in DSP allows fine-tuning of acoustic characteristics for each zone
- Easy configuration via LAN or WiFi
- IP and GPIO control options.
- Freestanding installation or rack mount (rack mount kit included)
Specifications
| Verstärkertyp |
|
|---|---|
| Output power | 125 W |
| Gewicht netto | 3.8 kg |
| Gewicht brutto | 4.5 kg |
Colour and design
| Color | Schwarz |
|---|
Konnektivität
| Anschlüsse und Übertragungsstandard |
|
|---|---|
| Anzahl Kanäle Ausgang | 8 |
| Impedance | 4-8 Ohm |
| Multikanal | No |
Produktdimensionen
| Breite | 440 mm |
|---|---|
| Höhe | 44 mm |
| Tiefe | 320 mm |
